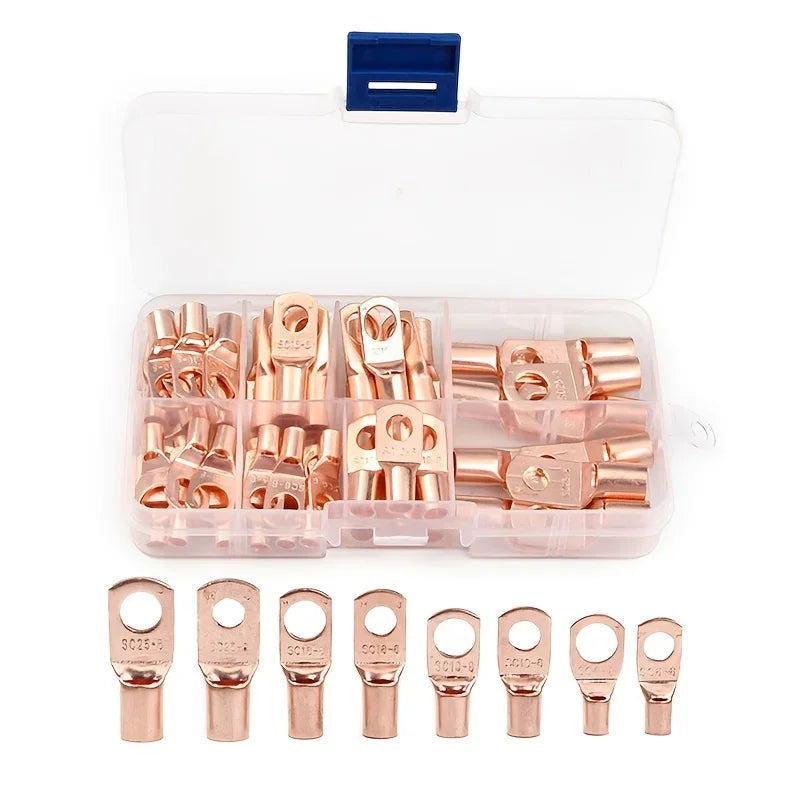

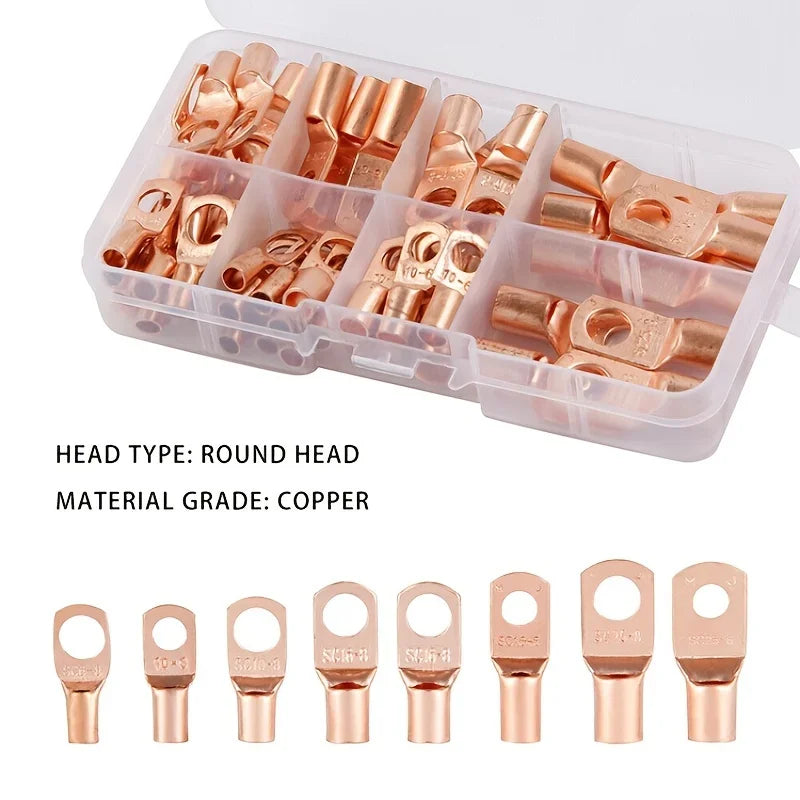

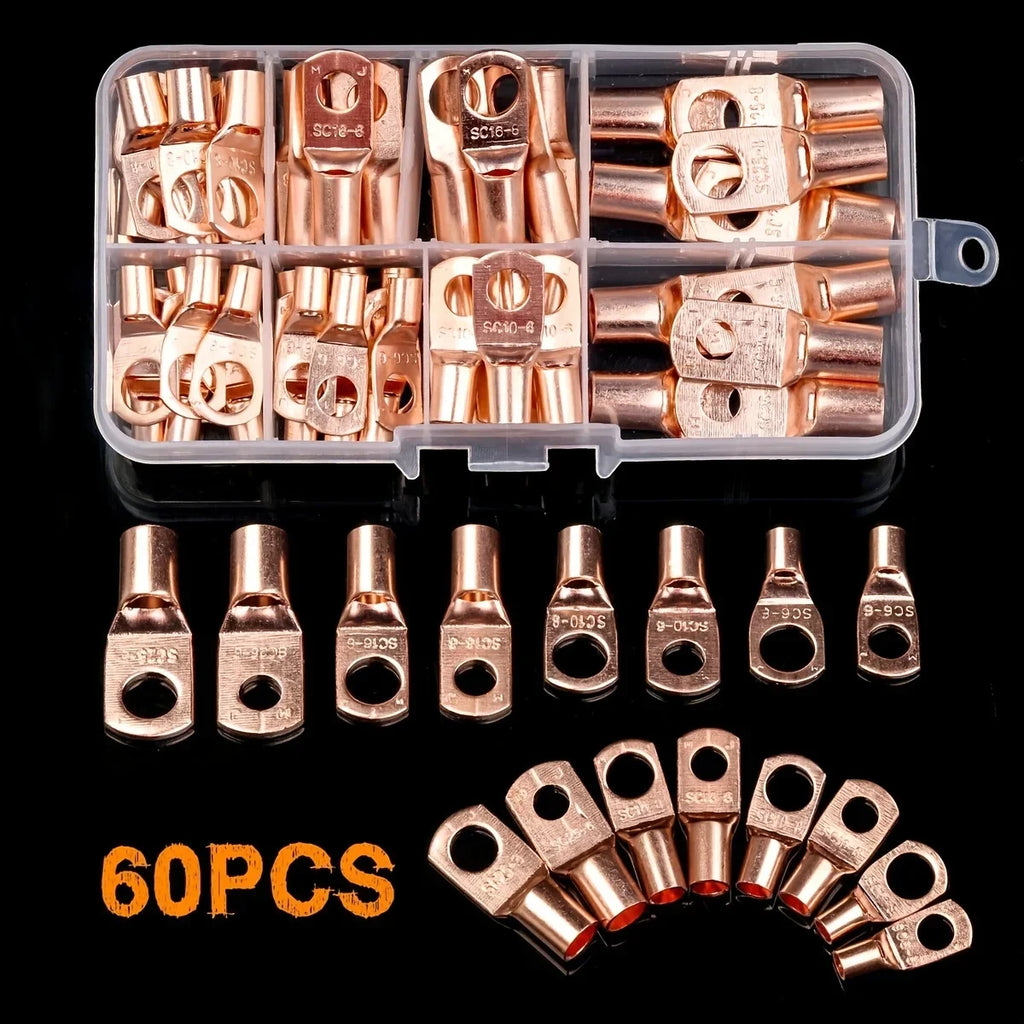

SC6-25 Ring-Type Crimp Terminal Wire Connector
The SC6-25 Ring-Type Crimp Terminal Wire Connector is a dependable, pure copper electrical connector designed for secure, long-lasting wire termination. Whether you're wiring a control panel, automotive circuit, solar system, or industrial equipment, this crimp terminal delivers solid conductivity and a firm mechanical bond every time.
Key Features
- Pure Copper Construction: High-conductivity pure copper ensures minimal resistance and maximum current transfer.
- SC6-25 Specification: Designed for 6 mm² wire with a 25 mm bolt hole — a versatile size for power and ground connections.
- Crimp-Type Terminal: Easy, tool-compatible crimping for fast and reliable installation without soldering.
- Low-Voltage Rated: Suitable for low-voltage applications — below 50V AC or 75V DC (EU LVD compliant).
- No Battery Required: Ready to use right out of the packaging.
- Durable Finish: Tinned or smooth copper barrel resists corrosion for a long service life.
- Wide Application: Ideal for automotive wiring, marine electrical systems, solar panel installations, home electrical panels, and DIY projects.
Specifications

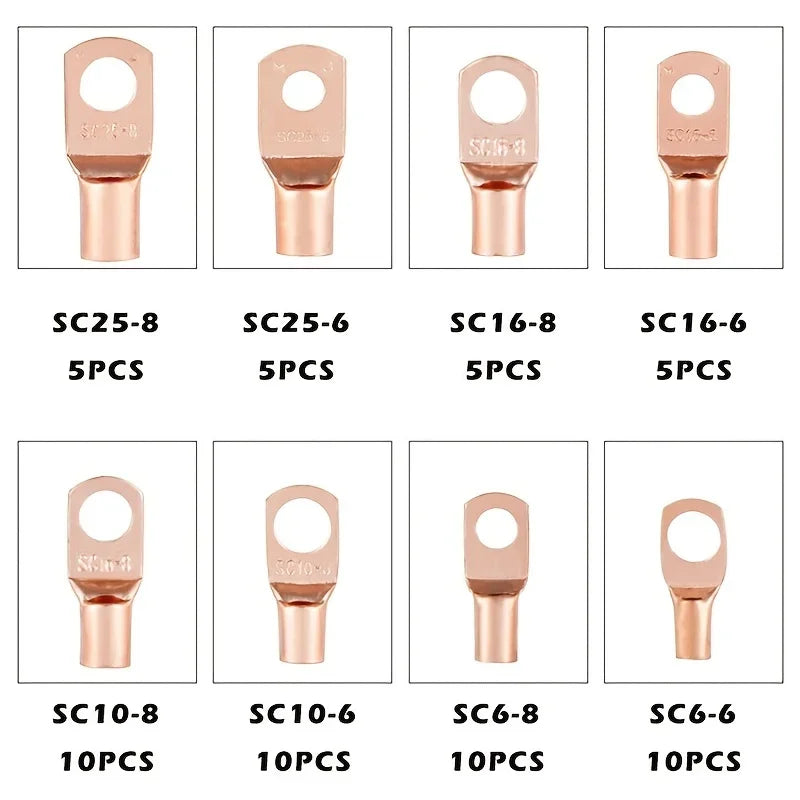

- Type: Crimp Ring Terminal (SC6-25)
- Wire Cross-Section: 6 mm²
- Stud Hole Diameter: 25 mm
- Material: Pure Copper
- Voltage Rating: Low voltage — below 50V AC / 75V DC
- Battery Included: No
- Vendor: Qme
Why Choose SC6-25 Ring Terminals?
Ring-type crimp terminals are the industry standard for secure, permanent wire-to-stud connections. The ring design prevents accidental disconnection, making them the preferred choice for grounding points, battery terminals, and high-reliability electrical joints. The SC6-25 size is especially popular in solar energy setups, marine wiring, and automotive electrical work.
For more information on safe electrical wiring practices and connector standards, visit the U.S. Consumer Product Safety Commission – Electrical Safety.
Frequently Asked Questions
Q: What wire size is the SC6-25 ring terminal compatible with?
A: The SC6-25 ring-type crimp terminal is designed for cables with a cross-sectional area of 6 mm². The "25" in the model name refers to the stud hole diameter of 25 mm, making it suitable for larger bolt or screw connections commonly found in automotive, solar, and industrial wiring applications.
Q: How do I install a SC6-25 ring-type crimp terminal connector?
A: Installation is straightforward: strip approximately 10–12 mm of insulation from the cable end, insert the bare wire into the copper barrel of the ring terminal, then use a crimping tool to compress the barrel firmly onto the wire. The ring end then slides over a bolt or stud and is secured with a nut. No soldering is required, making it a fast and reliable connection method.
Q: What applications are SC6-25 ring terminals used for?
A: SC6-25 ring-type crimp terminals are widely used in automotive wiring (battery and ground connections), marine electrical systems, solar panel and inverter installations, home electrical distribution boards, and industrial control panels — anywhere a secure, low-resistance wire-to-stud connection is needed at low-voltage levels (below 50V AC or 75V DC).
Q: Are these connectors made of pure copper?
A: Yes. The SC6-25 crimp terminals are made from pure copper, which provides superior electrical conductivity compared to aluminium or copper-clad alternatives. Pure copper terminals also offer better corrosion resistance and mechanical durability over the long term.
