USB-C PD3.1 Fast Charging 4-Wire Test Board Voltage Meter

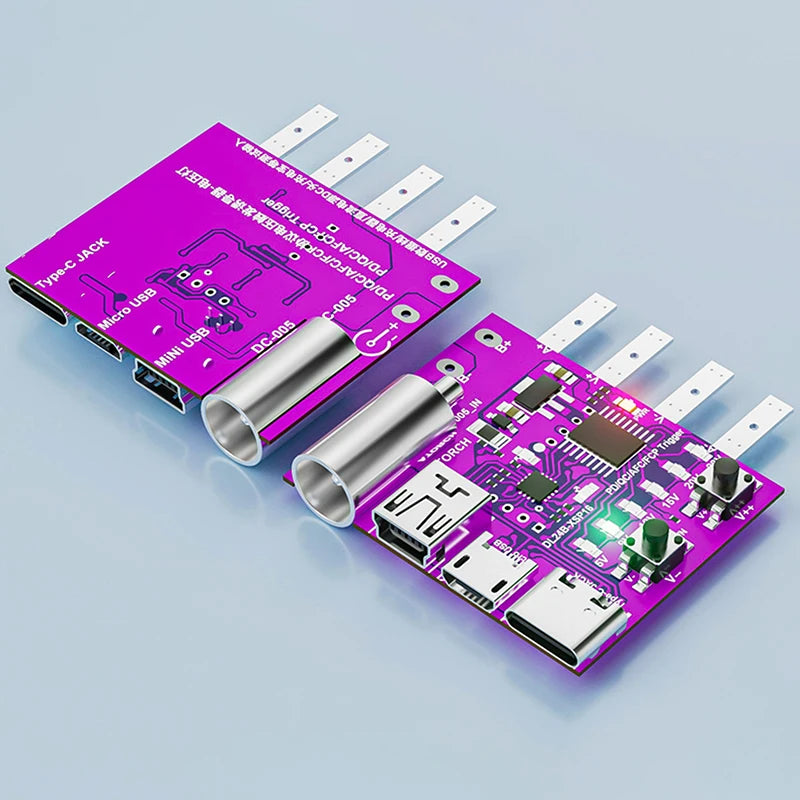

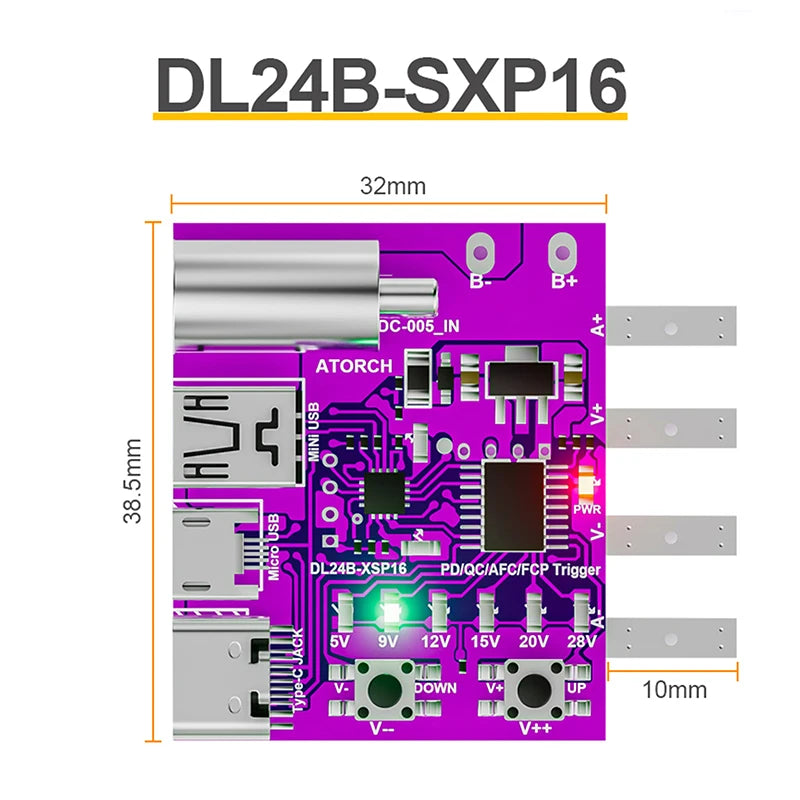

The USB-C PD3.1 Fast Charging Protocol 4-Wire Test Board Voltage Meter is a precision-engineered testing tool designed for electronics enthusiasts, technicians, and hobbyists who need reliable voltage measurement and fast-charging protocol verification. Whether you're validating a USB-C PD3.1 charger output, running aging tests with a load tester like the DL24, or simply diagnosing a charging setup, this compact test board delivers accurate, dependable results every time.

Built from durable ABS material and finished in a distinctive purple housing, this board combines everyday practicality with a functional aesthetic. Its 4-wire design ensures stable measurement connections, while broad compatibility with PD3.1 fast-charging protocols — supporting up to 140W — makes it a versatile addition to any electronics workbench.

Key Features

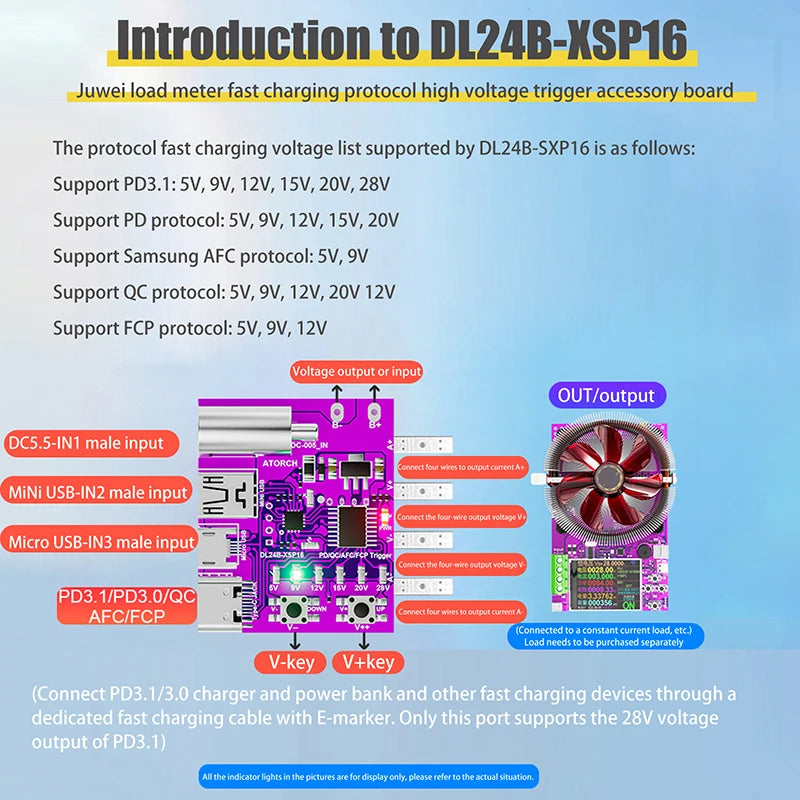

• PD3.1 Fast Charging Protocol Support: Accurately tests and verifies USB-C Power Delivery 3.1 protocols for high-wattage chargers up to 140W.

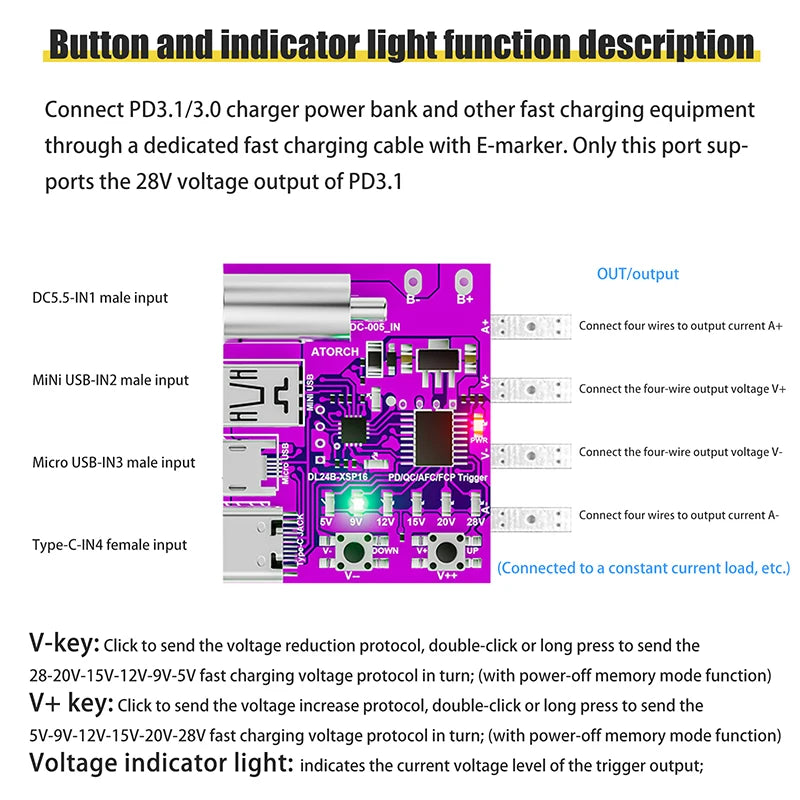

• 4-Wire Testing Configuration: Provides stable, low-resistance connections for more accurate voltage and current readings.
• Built-In Voltage Meter: Displays real-time voltage output so you can quickly assess charger and cable performance.

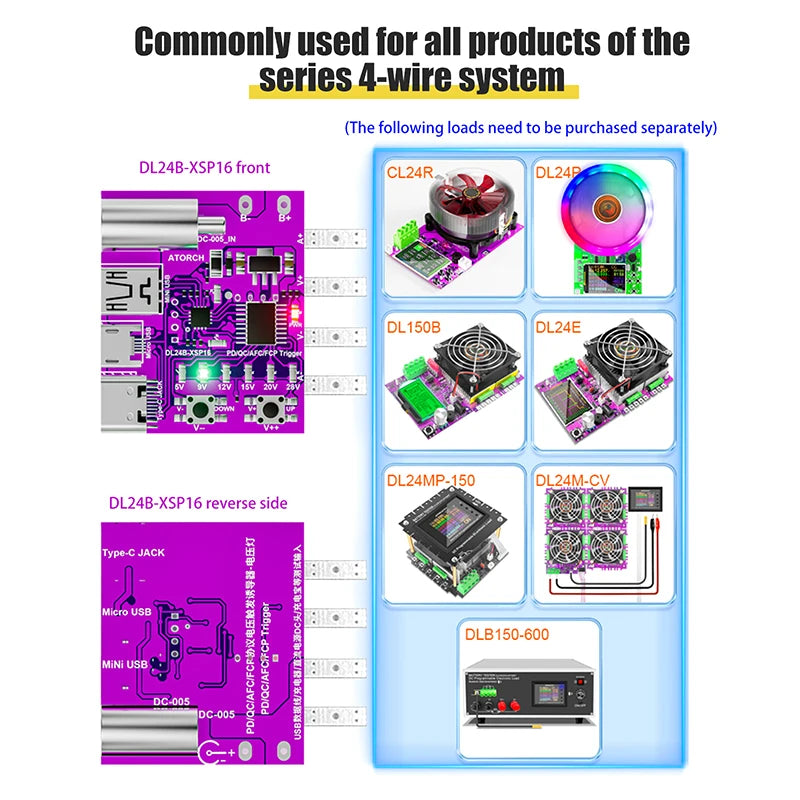

• DL24 Load Tester Compatible: Ideal for use alongside DL24 electronic load testers for comprehensive charger aging and stress testing.
• Durable ABS Construction: Lightweight yet sturdy housing stands up to regular workshop use.
• Compact & Bench-Friendly Design: Easy to integrate into existing test setups without taking up extra space.
• Measurement Tolerance: Allowed error of ±1–3% for reliable, repeatable results.

Specifications

• Protocol: USB-C PD3.1
• Max Power: 140W
• Wire Configuration: 4-Wire
• Material: ABS Plastic
• Color: Purple

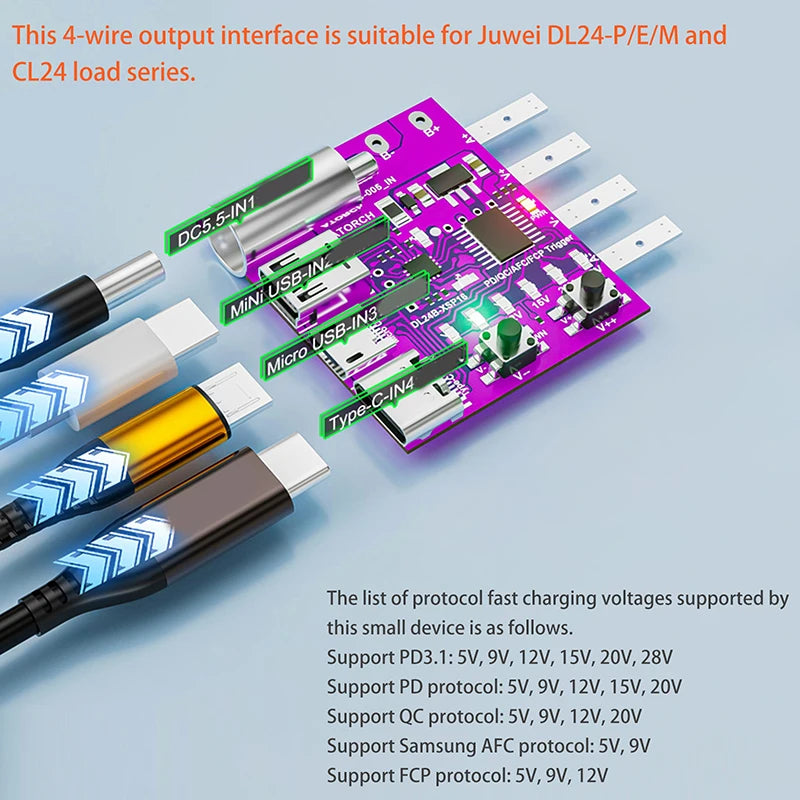

• Compatible With: DL24 Load Tester and similar electronic load devices
• Measurement Tolerance: ±1–3%

Who Is This For?

This test board is perfect for electronics technicians, repair professionals, and DIY enthusiasts who regularly test USB-C chargers, power banks, cables, and fast-charging adapters. It's also a smart pick for quality-control workflows where charger output verification is essential.

For further reading on USB power delivery standards and safe electronics testing practices, visit the U.S. Consumer Product Safety Commission (CPSC) for guidance on charger safety and standards.

Frequently Asked Questions

Q: What does the USB-C PD3.1 4-Wire Test Board Voltage Meter do?

A: This test board is used to verify and monitor the voltage output of USB-C Power Delivery 3.1 fast-charging devices. Its 4-wire configuration provides stable, accurate readings, and it is compatible with load testers such as the DL24 for charger aging and stress testing up to 140W.

Q: Is this test board compatible with all USB-C PD chargers?

A: This board is specifically designed to work with USB-C PD3.1 protocol chargers supporting up to 140W. It is ideal for high-wattage fast-charging verification and is commonly used alongside the DL24 electronic load tester for comprehensive testing workflows.

Q: What material is the test board made from, and how durable is it?

A: The board is housed in a durable ABS plastic shell, making it lightweight yet resilient enough for regular bench use. The purple color-coded housing also makes it easy to identify in a busy workspace.

Q: What is the measurement accuracy of this voltage meter?

A: The test board has an allowed measurement tolerance of ±1–3%, making it reliable for standard charger testing and verification tasks in both professional and hobbyist settings.
